Architecture of High-Frequency 800V DC Supplies
High-Frequency Switching Topology
Modern 800V DC power supplies utilize high-frequency switching technology (often >50kHz) to achieve high power density and rapid transient response. Unlike traditional linear supplies which dissipate excess power as heat, switching regulators use Pulse Width Modulation (PWM) and advanced topologies like LLC Resonant Converters or Phase-Shifted Full Bridge (PSFB).
Key Advantages:
- Efficiency: Typically >90%, reducing thermal management requirements.
- Compact Size: Higher frequency allows for smaller magnetic components (transformers and inductors), making 800W+ units fit in standard 1U or 2U rack mounts.
- Ripple Regulation: Despite switching noise, modern output filters suppress voltage ripple to <10mVrms, suitable for sensitive semiconductor testing.

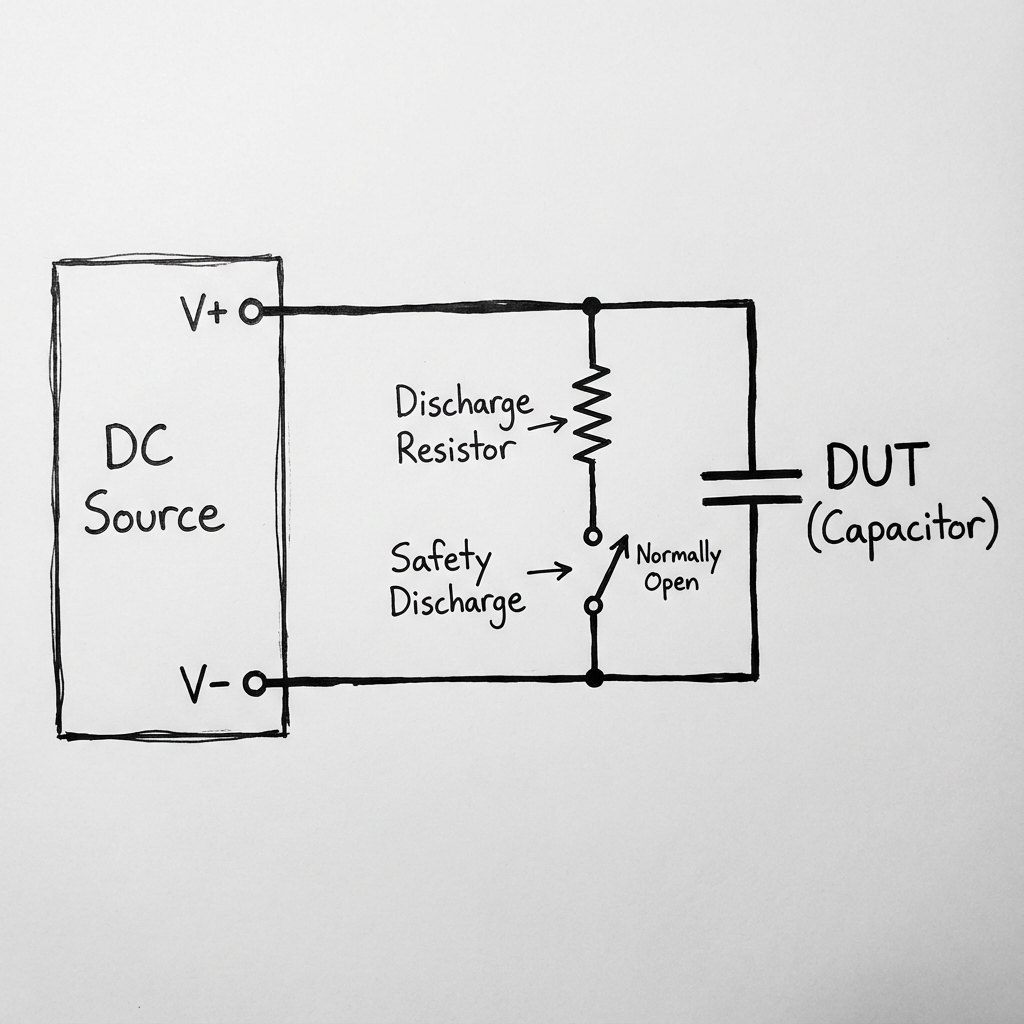

For laboratory applications requiring pure DC with minimal noise, engineers should look for units with multi-stage output filtering.
